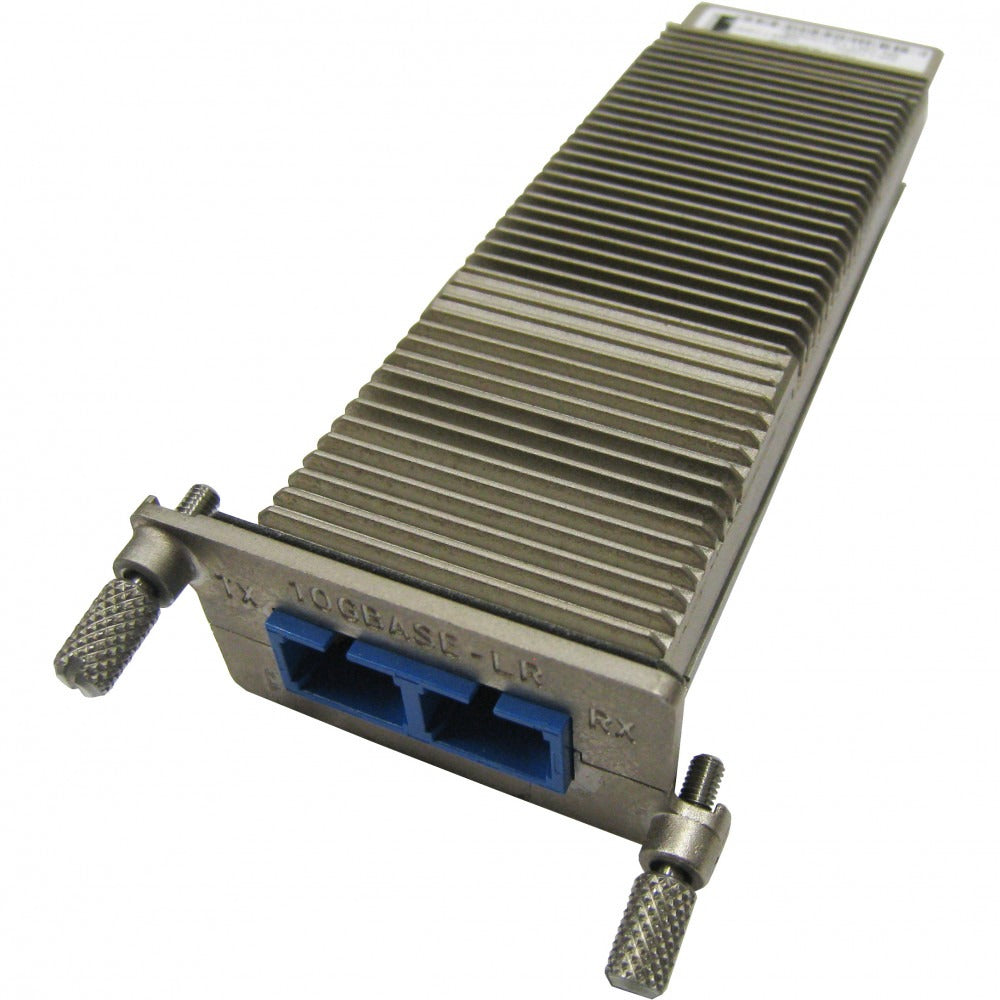

XENPAK-10GB-LR+= Cisco 10GBASE-LR XENPAK SC/PC Single-Mode Transceiver

BRAND NEW. FACTORY SEALED. FULL CISCO WARRANTY INCLUDED.
SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The Cisco XENPAK-10GB-LR+= is a 10GBASE-LR XENPAK transceiver module designed for reliable 10 Gigabit Ethernet connectivity over longer fibre runs. Designed for single-mode fiber (SMF) and operating at 1310nm, it supports distances up to 10 km (6.21 miles) with an SC/PC duplex connector.

This transceiver is ideal when you need stable, high-speed uplinks between network closets, buildings, or core switching environments. It also supports hot-swappable deployment so that you can expand or replace optics without long downtime.

Key Features

·         Supports 10 Gigabit Ethernet (10GBASE-LR) connectivity

·         Up to 10 km reach over single-mode fiber

·         Operates at 1310nm wavelength

·         SC/PC duplex connector interface

·         Hot-swappable XENPAK form factor for fast installation

·         Designed for enterprise and data networking uplinks

·         Supports pay-as-you-populate optical expansion

·         Laser Class 1 compliant optics for safe operation

Technical Specifications

Optics and Performance

·         Form Factor: XENPAK

·         Interface Type: 10GBASE-LR

·         Data Transfer Rate: 10 Gbps

·         Connectivity Media: Single-Mode Fiber (SMF)

·         Supported Distance: Up to 10 km (6.21 miles)

·         Wavelength Range: 1260 to 1355 nm

·         Power Consumption: 8W maximum

Connector and Port Details

·         Ports/Channels: 1

·         Port Type: 10GBASE-LR LAN

·         Connector: SC/PC duplex

Environmental

·         Operating Temperature: 32°F to 104°F (0°C to 40°C)

·         Storage Temperature: -40°F to 167°F (-40°C to 75°C)

Standards and Compliance

·         IEEE Standard: IEEE 802.3ae

·         Laser Safety: Laser Class 1 (21 CFR-1040)

Optical Transmit and Receive Specifications

·         Transmit Power (dBm): 0.5 (Min), -8.2 (Max)

·         Receive Power (dBm): 0.5 (Min), -14.4 (Max)

UPC: 686907912211

Use Cases

The XENPAK-10GB-LR+= is best for organisations that need reliable 10Gb fiber uplinks over longer distances. It fits campus networks, enterprise backbones, and inter-building connectivity where copper cannot deliver stable performance. It is also a solid option for upgrading legacy 10G infrastructure that still relies on XENPAK ports for high-speed optical links.

Why Choose the XENPAK-10GB-LR+=

·         Delivers long-reach 10G performance for enterprise fiber networks

·         Supports stable inter-building connectivity up to 10 km

·         Uses SC/PC duplex for straightforward fiber patching

·         Enables hot-swap expansion without major downtime

·         Helps extend the life of existing hardware with XENPAK interfaces

·         Ships brand new with full warranty coverage

FAQs

What is the Cisco XENPAK-10GB-LR+= used for?

It helps to add 10GBASE-LR optical connectivity to network equipment that supports XENPAK transceiver slots, especially for long-distance single-mode fiber links.

Which fibre type does this transceiver support?

It requires single-mode fiber (SMF) for long-reach performance.

What connector does the XENPAK-10GB-LR+= use?

It uses an SC/PC duplex connector, which is common in many enterprise fiber deployments.

How far can this module transmit data?

It supports distances up to 10 km (6.21 miles) over single-mode fiber.

Is this module hot-swappable?

Yes. It is a hot-swappable input/output module, so you can install or replace it without shutting down the entire device.

Is this compatible with all Cisco switches and routers?

It is best for devices that have an Ethernet XENPAK port. Compatibility depends on the specific Cisco platform and port type.

Does it support 10Gbps Ethernet only?

Yes, this model supports 10 Gigabit Ethernet (10GBASE-LR) connectivity.

Does the warranty cover this product?

Yes. It ships brand new and includes full Cisco warranty coverage when applicable to the product listing.
