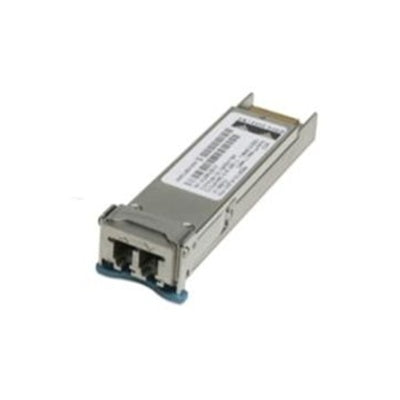

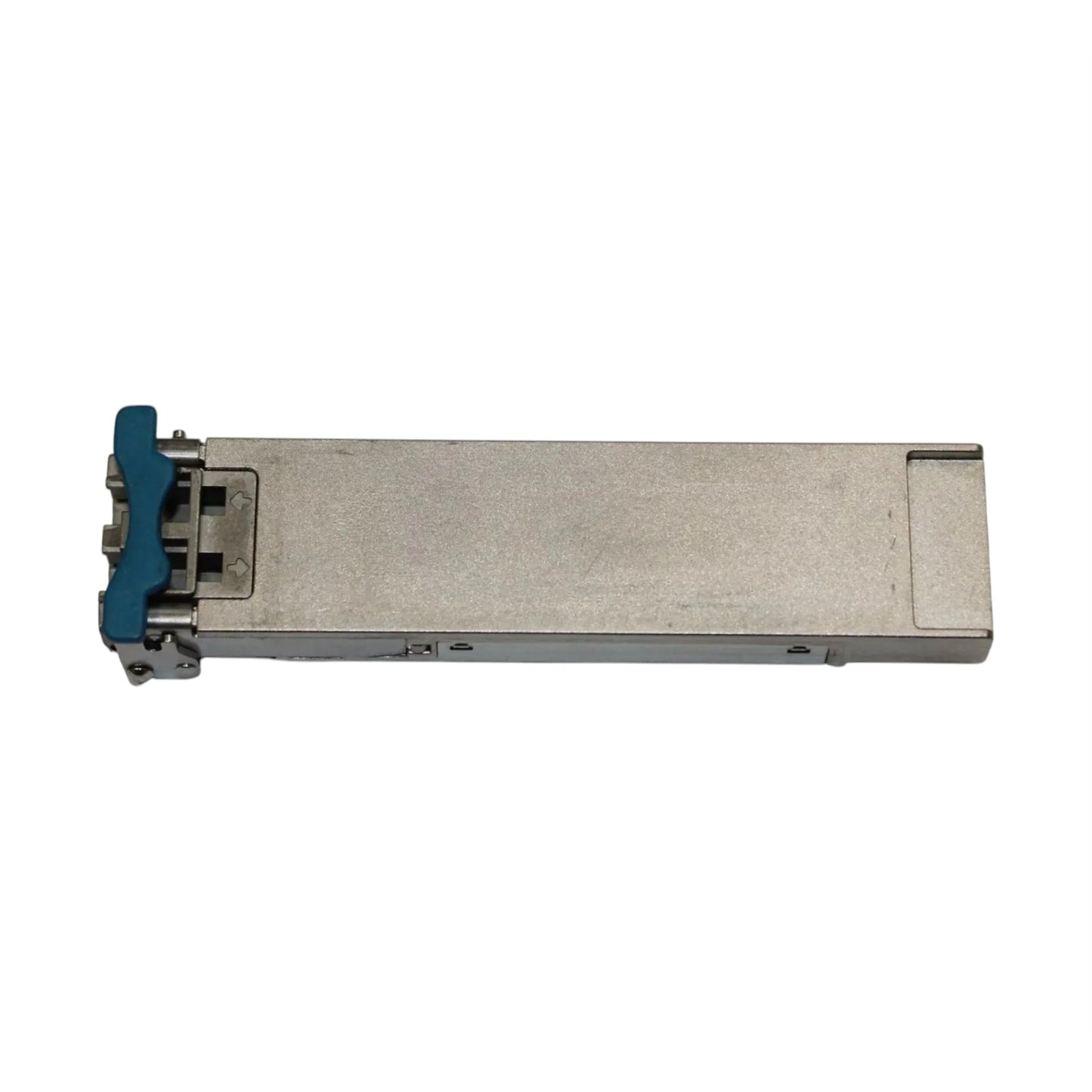

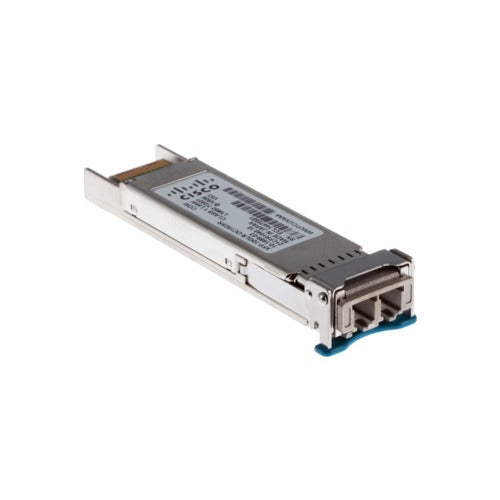

Cisco Multirate XFP Transceiver Module XFP-10GLR-OC192SR

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL CISCO WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

The Cisco XFP-10GLR-OC192SR is a dependable multirate XFP transceiver built for high-speed optical connectivity across enterprise and service provider networks. It supports both 10 Gigabit Ethernet and OC-192/STM-64 applications, making it a practical option when you need consistent performance across critical links without overcomplicating hardware choices.

With a 1310nm wavelength and support for single-mode fiber (SMF), this module delivers stable 10G transmission up to 10km, ideal for campus backbones, metro links, and infrastructure upgrades.

Key Features

·         Supports 10GBASE Ethernet and OC-192/STM-64 connectivity

·         Delivers 10.3Gbps data rate for high-throughput links

·         Uses a 1310nm wavelength for reliable SMF transmission

·         Supports up to 10km reach over single-mode fiber

·         Includes DDMI for optical diagnostics and monitoring

·         Uses a Dual LC connector for standard fiber patching

·         Built with DFB laser + PIN receiver for stable signal delivery

Technical Specifications

Part Number: XFP-10GLR-OC192SR
Device Type: Cisco XFP LR
Package: XFP
Data Rate: 10.3Gbps
Wavelength: 1310nm
Distance/Power Budget: 10km

Optical Components

LD: DFB
PD: PIN

Output Power: -6~-1dBm
Receiver Sensitivity: -15dBm
Power Supply Voltage: 3.3V/5V
Connector: Dual LC
Fiber Type: SMF
Operating Temperature: 0~70 °C
DDMI: With
Application: 10GBASE Ethernet and OC-192/STM-64

Compatibility:
7600-ES20-10G3C, 7600-ES20-10G3C=, 7600-ES20-10G3CXL, 7600-ES20-10G3CXL=,
SPA-1XTENGE-XFP, SPA-1XTENGE-XFP=, SPA-OC192POS-XFP, SPA-OC192POS-XFP=

Cisco Part Number: XFP-10GLR-OC192SR
UPC: 746320996523

Use Cases

The XFP-10GLR-OC192SR is a strong choice for teams building reliable 10G fiber uplinks across campus networks, enterprise backbones, and service-provider transport paths. It fits perfectly when you need up to 10km reach over SMF for stable connectivity between racks, floors, buildings, or network nodes while keeping monitoring and troubleshooting simple through DDMI.

Why Choose the XFP-10GLR-OC192SR

·         Ideal for 10km single-mode fiber links at 10G speeds

·         Supports both Ethernet and OC-192/STM-64, reducing complexity

·         Helps monitor link health using DDMI diagnostics

·         Uses widely compatible Dual LC fiber connectivity

·         Ships brand new with full Cisco warranty support

FAQs

What is XFP-10GLR-OC192SR used for?

It supports 10G Ethernet and OC-192/STM-64 connectivity over single-mode fibre, typically up to 10km.

What is the maximum supported distance?

This module supports up to 10km over SMF.

What wavelength does it use?

It operates at 1310nm, a common standard for 10km fiber optics.

Does it support single-mode fiber or multimode fiber?

It supports single-mode fiber (SMF).

Does it include optical diagnostics?

Yes, it supports DDMI, which provides real-time optical monitoring.

What connector type does it use?

It uses a Dual LC connector.

What data rate does this transceiver support?

It supports 10.3Gbps.

Is it compatible with Cisco platforms and SPA modules?

Yes, it supports compatibility with platforms like 7600 series modules and SPA XFP interfaces, as listed in the specifications.
