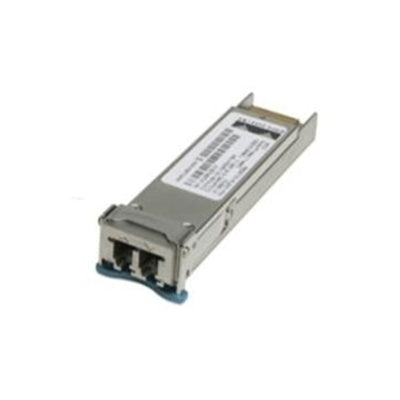

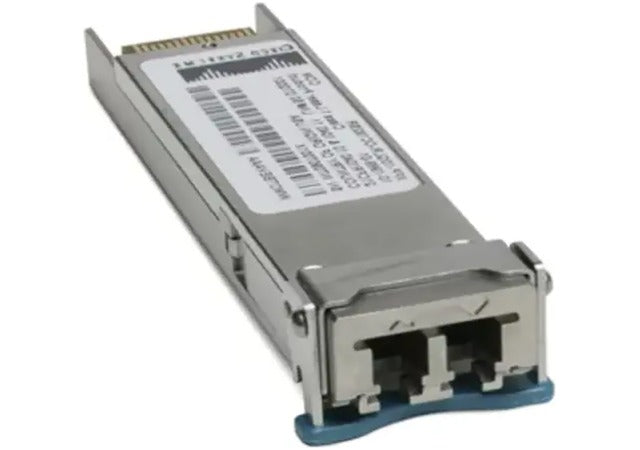

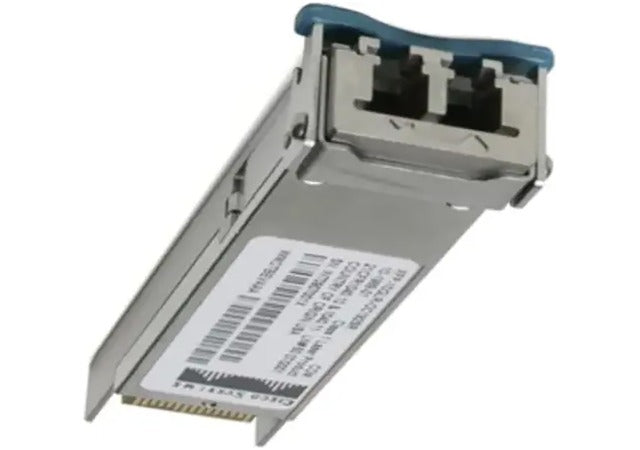

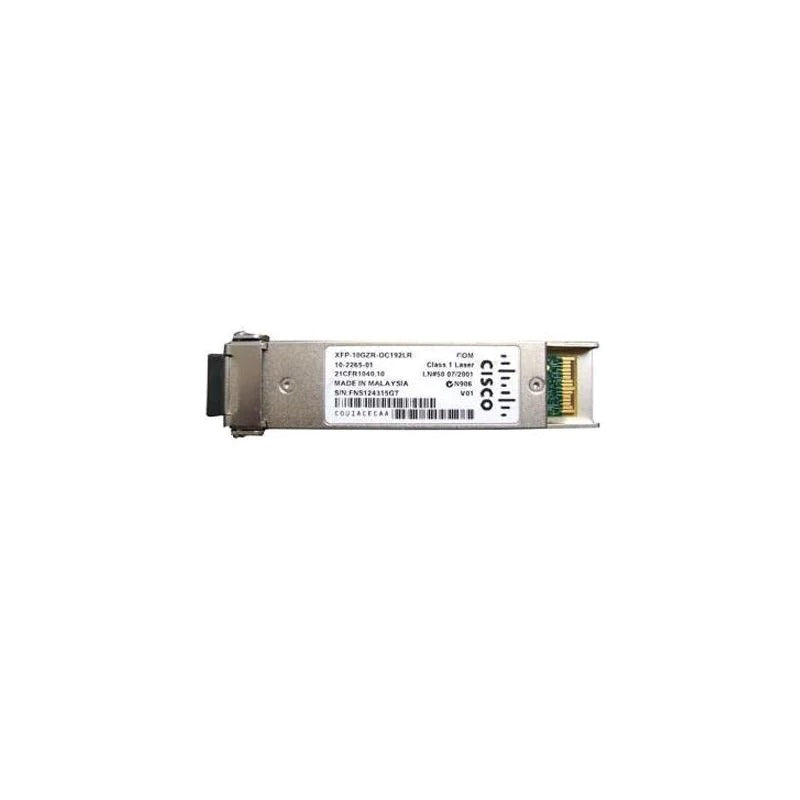

Cisco Multirate XFP Transceiver Module XFP-10GZR-OC192LR=

BRAND NEW WITH THE FULL CISCO WARRANTY!!!

Overview

When you need long-distance 10G connectivity that stays stable across metro and transport links, the Cisco XFP-10GZR-OC192LR= delivers the reach and optical strength that enterprise and service provider networks depend on. This multirate XFP supports both 10GBASE Ethernet and OC-192/STM-64 long-reach (IR-2) applications, so you can standardize your uplinks while keeping your architecture flexible.

It’s a smart fit for environments where performance cannot drop, even across long fiber runs.

Key Features

·         Supports multirate operation for Ethernet and SONET/SDH transport use

·         Works with 10GBASE Ethernet and OC-192/STM-64 long-reach (IR-2)

·         Delivers 10.3 Gbps data rate for high-bandwidth links

·         Uses a 1550 nm wavelength for long-distance optical transmission

·         Supports up to 80 km reach over single-mode fiber

·         Includes DDMI for real-time optical diagnostics monitoring

·         Built with a dual LC connector for clean fiber integration

Technical Specifications

Part Number: XFP-10GZR-OC192LR
Device Type: Cisco XFP ZR
Package: XFP
Data Rate: 10.3Gbps
Wavelength: 1550nm
Distance/Power Budget: 80km

Optical Components

LD: EML

PD: APD
Output Power: 0~5dBm
Receiver Sensitivity: -23dBm
Power Supply Voltage: 3.3V/5V
Connector: Dual LC
Fiber Type: SMF
Operating Temperature: 0~70 °C
DDMI: With
Application: 10GBASE Ethernet and OC-192/STM-64
Cisco Part Numbers: XFP-10GZR-OC192LR, XFP-10GZR-OC192LR=
UPC: 00008265803312, 00882658033124

Use Cases

The XFP-10GZR-OC192LR= works best for long-haul fiber connections where shorter optics fail to reach. Teams commonly deploy it for metro Ethernet uplinks, service provider transport networks, backbone connectivity, and long-distance enterprise interconnects that require consistent 10G performance over single-mode fiber.

Why Choose the XFP-10GZR-OC192LR=

·         Ideal for 80km long-reach 10G links without frequent signal drops

·         Supports both Ethernet and OC-192/STM-64 for flexible deployments

·         Helps troubleshoot faster using DDMI optical monitoring

·         Strong fit for carrier-grade and enterprise backbone environments

·         Ships brand new with full Cisco warranty support

FAQs

What is XFP-10GZR-OC192LR= used for?

It is for long-reach 10G connectivity over single-mode fiber in Ethernet and OC-192/STM-64 transport networks.

What is the maximum distance supported?

This transceiver supports up to 80 km reach.

What wavelength does this module operate on?

It operates at 1550 nm, which is common for long-distance optics.

Does it support single-mode or multimode fiber?

It supports single-mode fiber (SMF).

What connector type does it use?

It uses a Dual LC connector.

What data rate does it support?

It supports 10.3Gbps.

Does it include diagnostic monitoring?

Yes, it supports DDMI, which helps monitor optical performance and link health.

Is this module compatible with Ethernet and SONET/SDH?

Yes. It supports 10GBASE Ethernet and OC-192/STM-64 long-reach (IR-2) applications.
