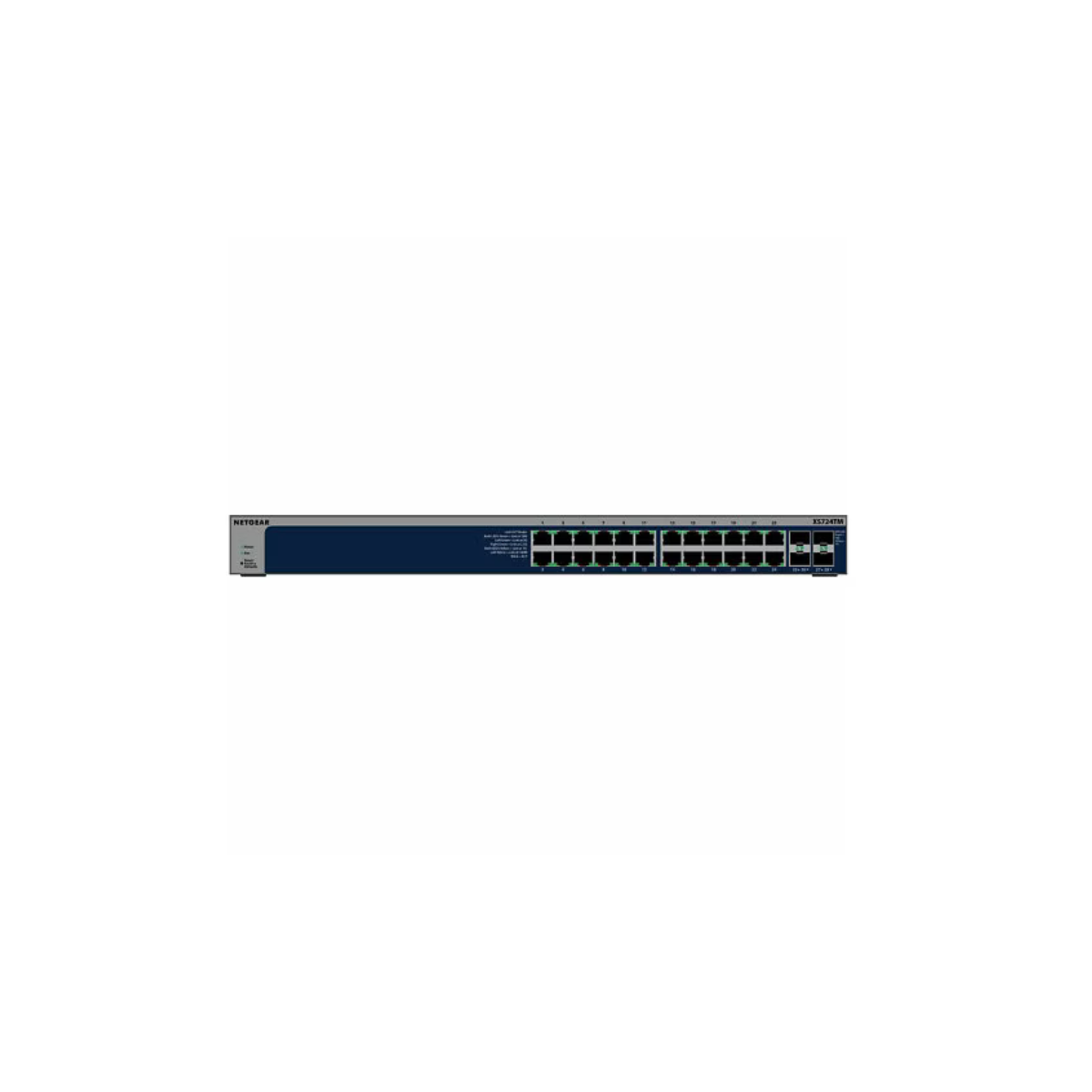

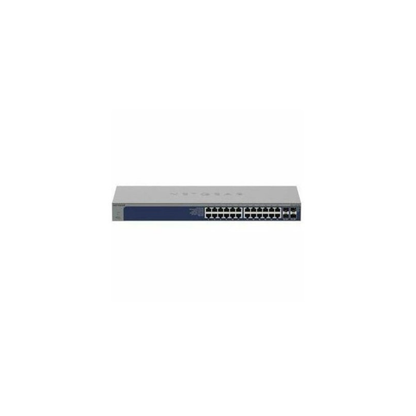

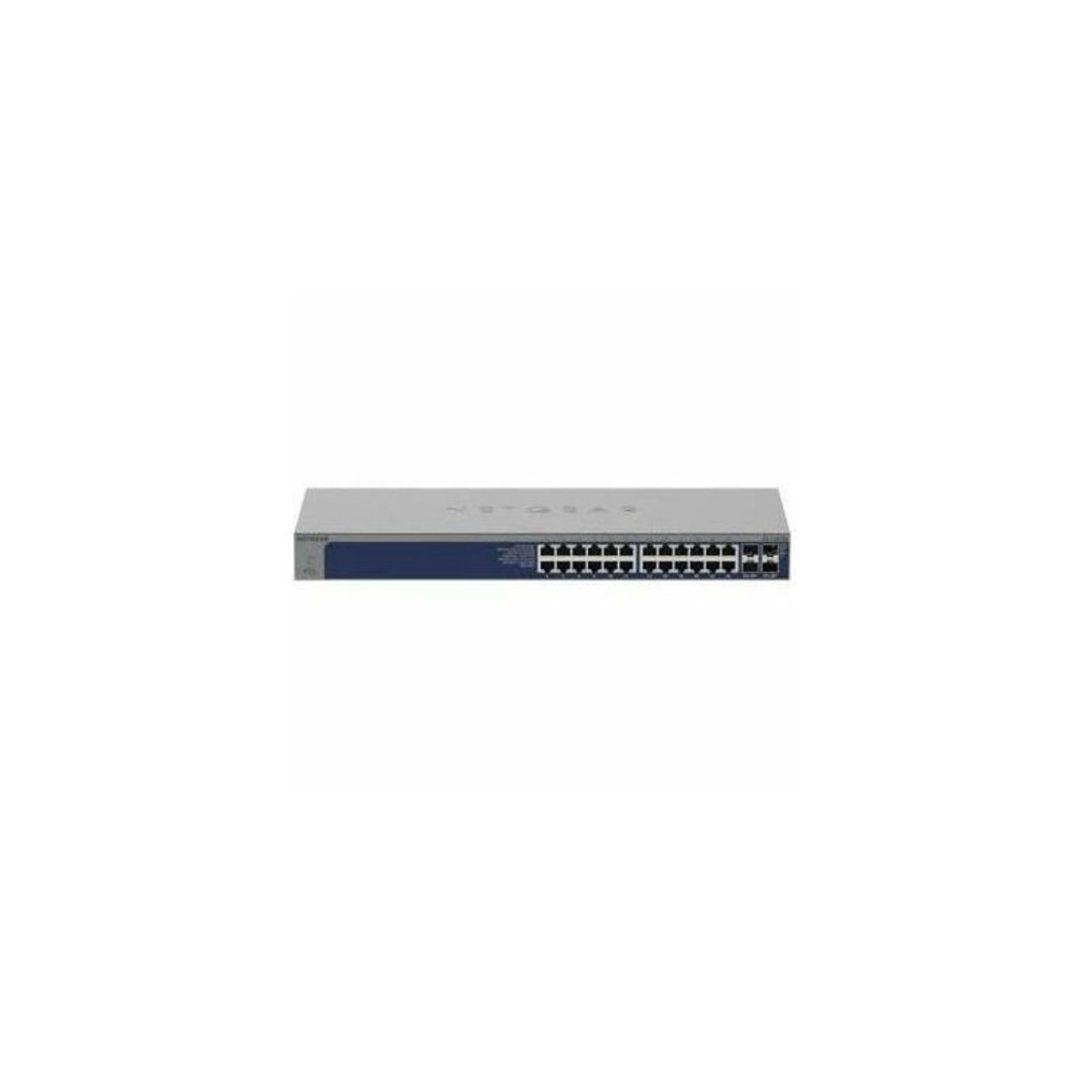

XS724TM-100NAS NETGEAR Business S3600 XS724TM 24-Port 10G/Multi-Gigabit Ethernet Smart Switch

BRAND NEW WITH FULL NETGEAR WARRANTY!!!

Overview

XS724TM-100NAS NETGEAR Business S3600 XS724TM 24-Port 10G/Multi-Gigabit Ethernet Smart Switch is a high-capacity smart-managed switch designed for modern business networks requiring multi-gigabit access and 10GbE aggregation. It provides 24 × 10G/5G/2.5G/1G RJ-45 ports and 4 dedicated 1G/10G SFP+ ports, delivering non-blocking 560 Gbps bandwidth for data-intensive workloads, high-speed wireless access points, video, VoIP, surveillance, and server connectivity.

The XS724TM combines L2+/Lite L3 functionality with centralized NETGEAR Insight cloud management, VLAN routing, ACLs, QoS, DHCP services, IPv6 support, and 802.1X authentication. Its desktop/rack-mount design, temperature- and load-controlled fans, and maximum acoustic noise of 29.61 dBA make it suitable for business offices as well as network racks where high-speed connectivity and manageable acoustics are important.

Key Features – XS724TM-100NAS NETGEAR Business S3600 XS724TM

• Processor: 1.25 GHz single-core CPU
• Memory: 1 GB RAM; 256 MB SPI Flash
• Storage: 256 MB SPI Flash
• Controller: Integrated smart-managed switching platform
• Networking / Ports:
  • 24 × 10G/5G/2.5G/1G RJ-45
  • 4 × dedicated 1G/10G SFP+ ports
• Switching Bandwidth: 560 Gbps, non-blocking full duplex
• Packet Forwarding Rate: 416.6 Mpps
• Packet Buffer: 4 MB
• MAC Address Table: 16K
• VLANs: 512
• Power & Cooling: Internal fixed power supply; 3 fixed internal fans
• Management: NETGEAR Insight Cloud Management, Web GUI, SNMP v1/v2c/v3, RMON, Lite CLI
• Security: L2/L3/L4 ACLs, 802.1X authentication, RADIUS, DHCP Snooping, Dynamic ARP Inspection, protected ports, Auto-DoS prevention
• Form Factor: Desktop and rack-mountable

Technical Specifications

• Processor Type: 1.25 GHz single-core CPU
• Chipset / Platform: NETGEAR S3600 Series / XS724TM
• Memory Technology: 1 GB RAM
• Storage Interface: 256 MB SPI Flash
• RAID Support: Not applicable to this network switch
• Expansion Slots: 4 × dedicated 1G/10G SFP+ ports
• Networking:
  • 24 × 10G/5G/2.5G/1G 1000BASE-T RJ-45
  • 4 × 1G/10G SFP+
  • 560 Gbps switching bandwidth
  • 416.6 Mpps forwarding rate
  • 16K MAC address table
  • 512 VLANs
  • 512 multicast groups
  • Up to 8K DHCP snooping bindings
  • Up to 9K jumbo frames
• I/O Ports:
  • 24 × RJ-45 Multi-Gigabit Ethernet
  • 4 × SFP+
• Operating System Compatibility: Managed through NETGEAR switch firmware, Web GUI, Lite CLI, and NETGEAR Insight Cloud Management
• Layer 2/3 Features: VLAN routing, IPv4/IPv6 static routing, DHCP client/snooping/server/relay, IGMP Snooping, LACP, LLDP-MED, QoS, ACLs and IPv6 management features

Physical Specifications

• Form Factor: Desktop / rack-mountable
• Weight:
  • 3.38 kg
  • 7.45 lbs
• Dimensions:
  • 440 × 204 × 43.2 mm (W × D × H)
  • 17.3 × 8.03 × 1.7 inches
• Rack Compatibility: Rack-mountable; rackmount kit included
• Cooling: 3 fixed internal fans with temperature- and load-based fan-speed control
• Acoustic Noise: 29.61 dBA at 25°C
• Operating Temperature: 0°C to 50°C
• Maximum Power Consumption: 92.5 W
• MTBF: 408,354.7 hours at 25°C

Ideal For

• Enterprise and SMB access-layer networks
• 10GbE server and storage connectivity
• High-speed Wi-Fi access point deployments
• IP surveillance and video networks
• VoIP and unified communications environments
• Data-intensive office and departmental networks
• Network aggregation and high-bandwidth uplinks
• Multi-gigabit desktop deployments
• Rack-based network infrastructure
• Organizations requiring centralized cloud-based switch management

Warranty & Support

• Standard Manufacturer Warranty: NETGEAR Limited Lifetime Hardware Warranty
• Included Management: 1-year NETGEAR Insight Cloud Management subscription
• Support Contract Compatibility: NETGEAR offers optional Sprint support with 24/5 technical support and Advance RMA, and Overdrive support with 24/7 technical support, a 2-hour SLA, and Next Business Day RMA replacement. Support contracts are offered in one-, three-, or five-year terms.

FAQs – XS724TM-100NAS NETGEAR Business S3600 XS724TM

1. Can the XS724TM-100NAS connect both 10GbE and lower-speed devices?
Yes. Its 24 RJ-45 ports support 1GbE, 2.5GbE, 5GbE, and 10GbE, allowing businesses to mix different Ethernet speeds on the same switch.

2. Does the XS724TM-100NAS provide 10GbE fiber connectivity?
Yes. It has four dedicated 1G/10G SFP+ ports that can be used for fiber or compatible copper modules and high-speed network aggregation.

3. Can this switch be managed remotely?
Yes. NETGEAR Insight provides cloud-based setup, monitoring, configuration, firmware management, notifications, and centralized management across multiple networks and sites. Local Web GUI and Lite CLI management are also supported.

4. Does the XS724TM-100NAS support Layer 3 functionality?
Yes. The switch provides Lite Layer 3 capabilities, including IPv4/IPv6 static routing and VLAN routing, along with DHCP services.

5. Does it have redundant power supplies?
No. The XS724TM uses one internal fixed power supply. It is not a dual-PSU redundant-power switch.

6. Is the XS724TM-100NAS suitable for rack deployment?
Yes. NETGEAR specifies the XS724TM for desktop and rack-mount deployment, and a rackmount kit is included. Its 43.2 mm chassis height corresponds to approximately 1U of rack space.
